PiCCO Trouble Shooting Guide | For PulsioFlex with PiCCO module

Thermodilution results

Evaluation of the numbers

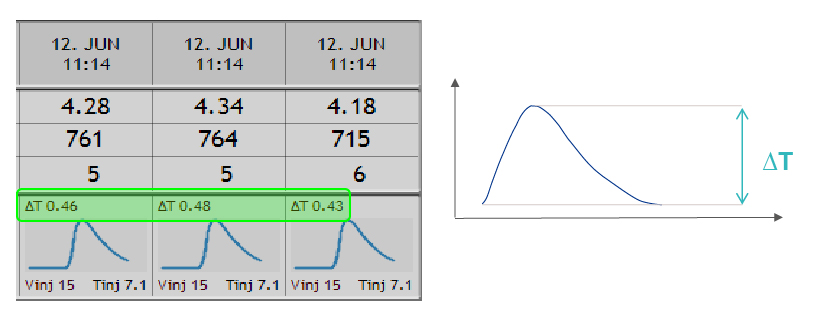

Thermodilution signal insufficient

1

Check temperature difference (ΔT) in the result screen is at least 0.2

2

Ensure adequate indicator amount (use colder and/or more injectate, max. 20ml cold saline)

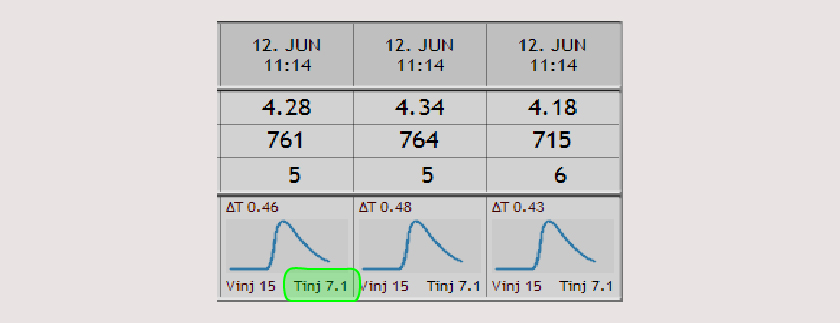

Bolus temperature insufficient

1

Check injectate temperature (Tinj) in the result screen is less than 10

2

Use colder saline for injectation

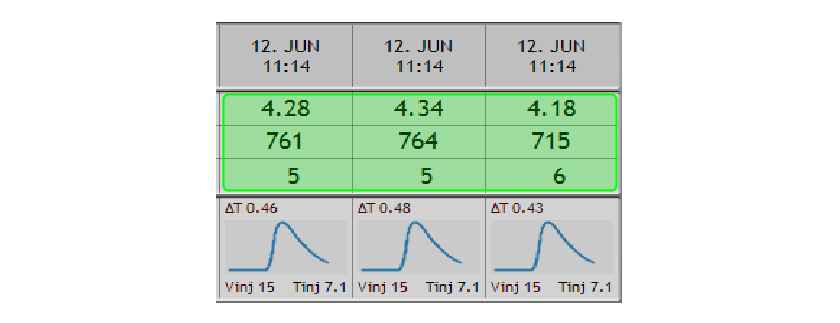

Thermodilution measurement results not plausible

1

Check patient data input
Patient Situation

2

Check injectate volume adjustment
injectate volume adjustment

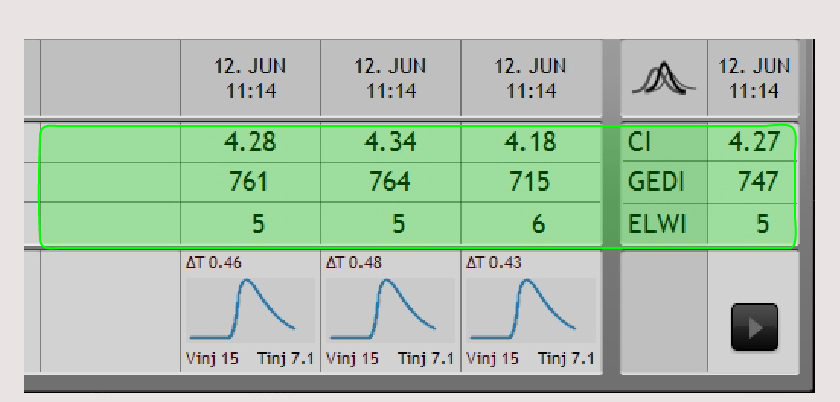

Thermodilution measurement results not reproducible

1

Check that measurement results differ les than ±15% from the mean value

2

Exclude out-of-range measurements from the averaging by touching the results column (marked by an X)

3

Possibly repeat a set of three thermodilution measurements

!

Remark:
Values of all single measurements should not differ more than +/- 15% from the average, shown in the column to the right

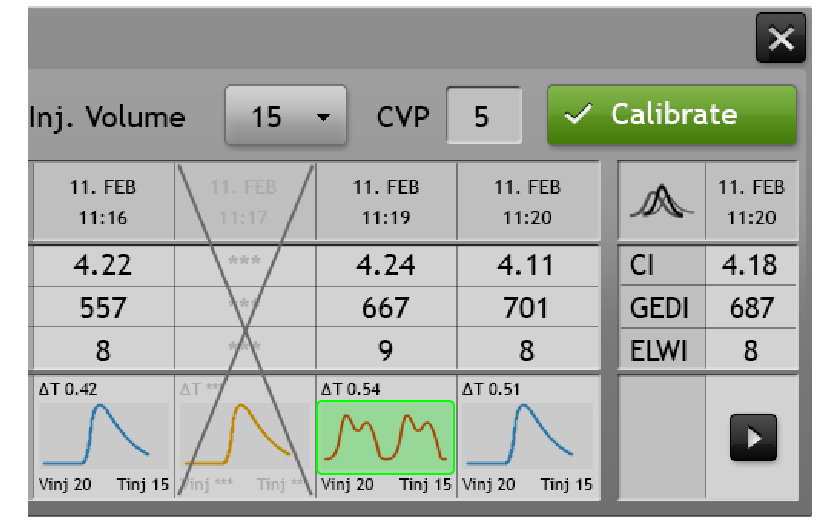

Continuous CO calibration not possible

1

During the thermodilution measurement no sufficient arterial pressure signal was available

2

Improve the arterial pressure signal quality

3

Check for treatment or disease as reason
Patient Situation

Your problem is not listed here?

Please contact your local Getinge representative
