PiCCO Trouble Shooting Guide | For PulsioFlex with PiCCO module

Basic Configuration

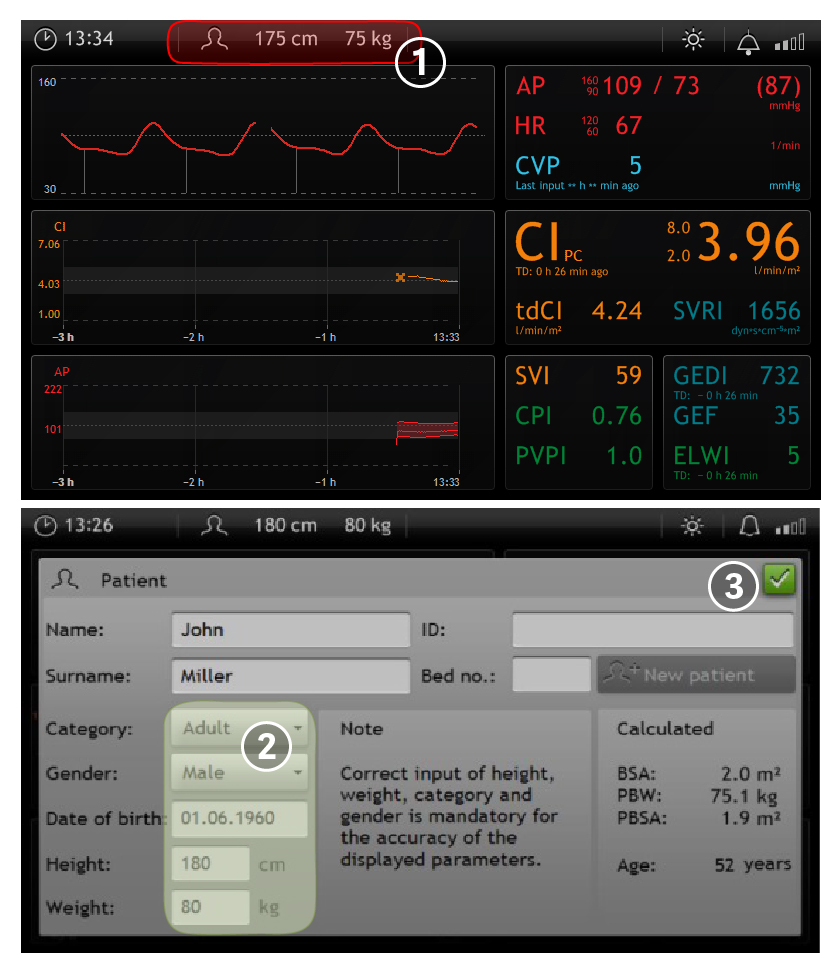

Patient Data

Check patient data input for plausibility and correct if necessary

1

Touch patient data in the information bar or access via the main menu

2

Adjust patient data

3

Close the window

!

Remark:
Correct input is required for
- Category
- Gender
- Date of birth
- Height
- Weight

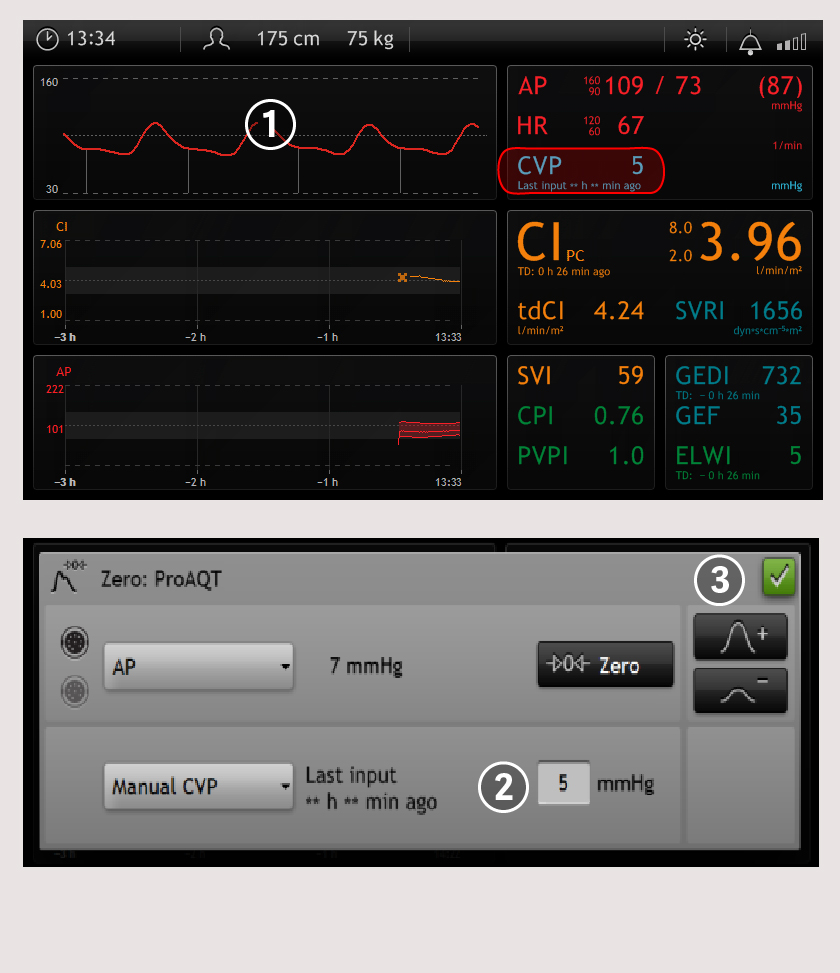

CVP input value

Check CVP value for plausibility and correct if necessary

1

Touch the pressure curve

2

Touch and adjust the CVP value

3

Close the window

!

Remark:
The default value for CVP is 5 mmHg. Changes are necessary when the actual CVP value differs significantly.
In case of a continuous measurement of CVP with PulsioFlex the value is automatically updated.

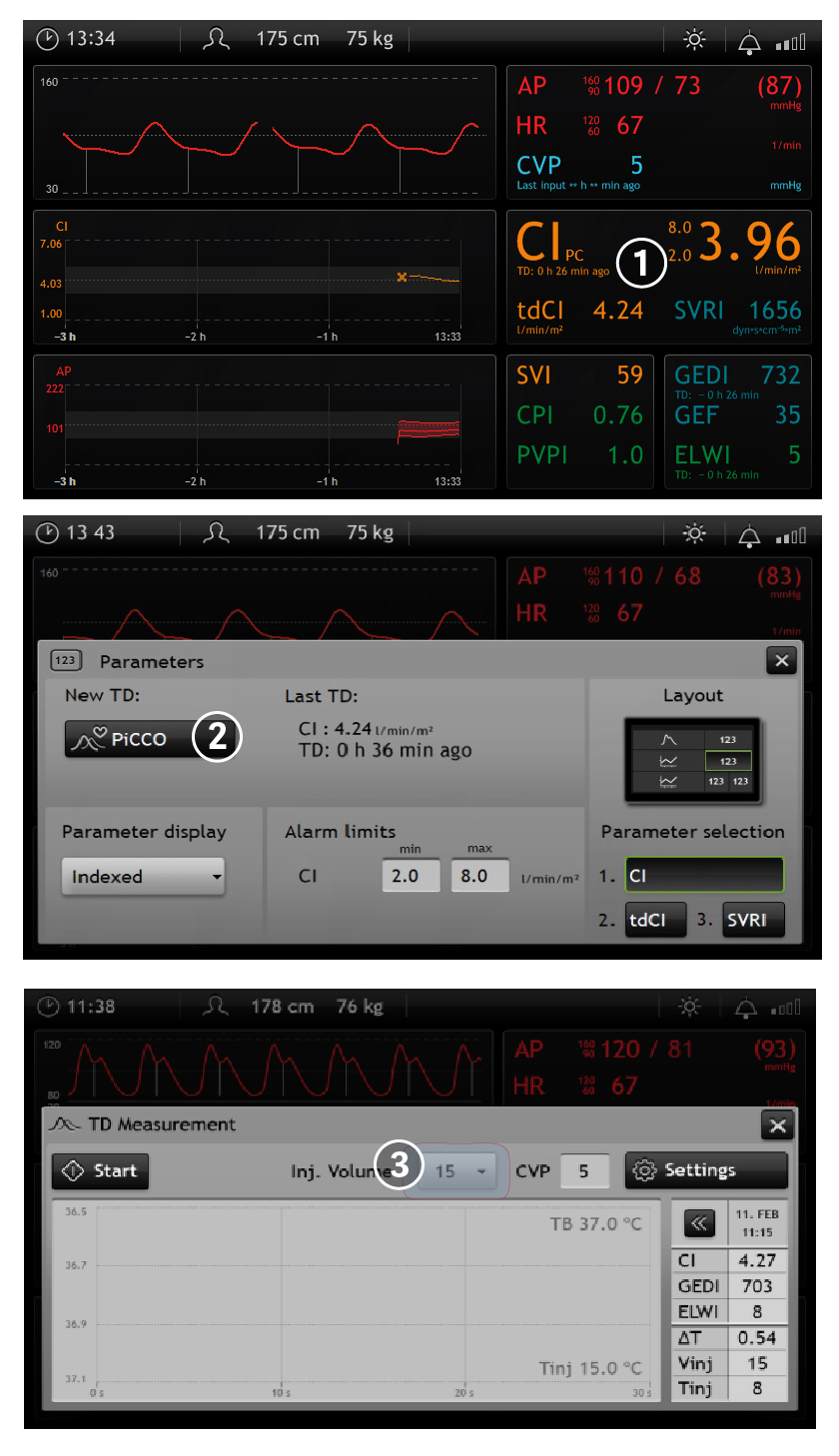

Injectate volume adjustment

Check injectate volume adjustment and correct if necessary

1

Touch parameter display area

2

Touch PiCCO to enter measurement screen

3

Touch Inj. Volume and adjust correctly

!

Remark:
Correct adjustment of the applied injectate volume is mandatory for correct parameter calculation.
