PiCCO Trouble Shooting Guide | For PulsioFlex with PiCCO module

Arterial blood pressure signal

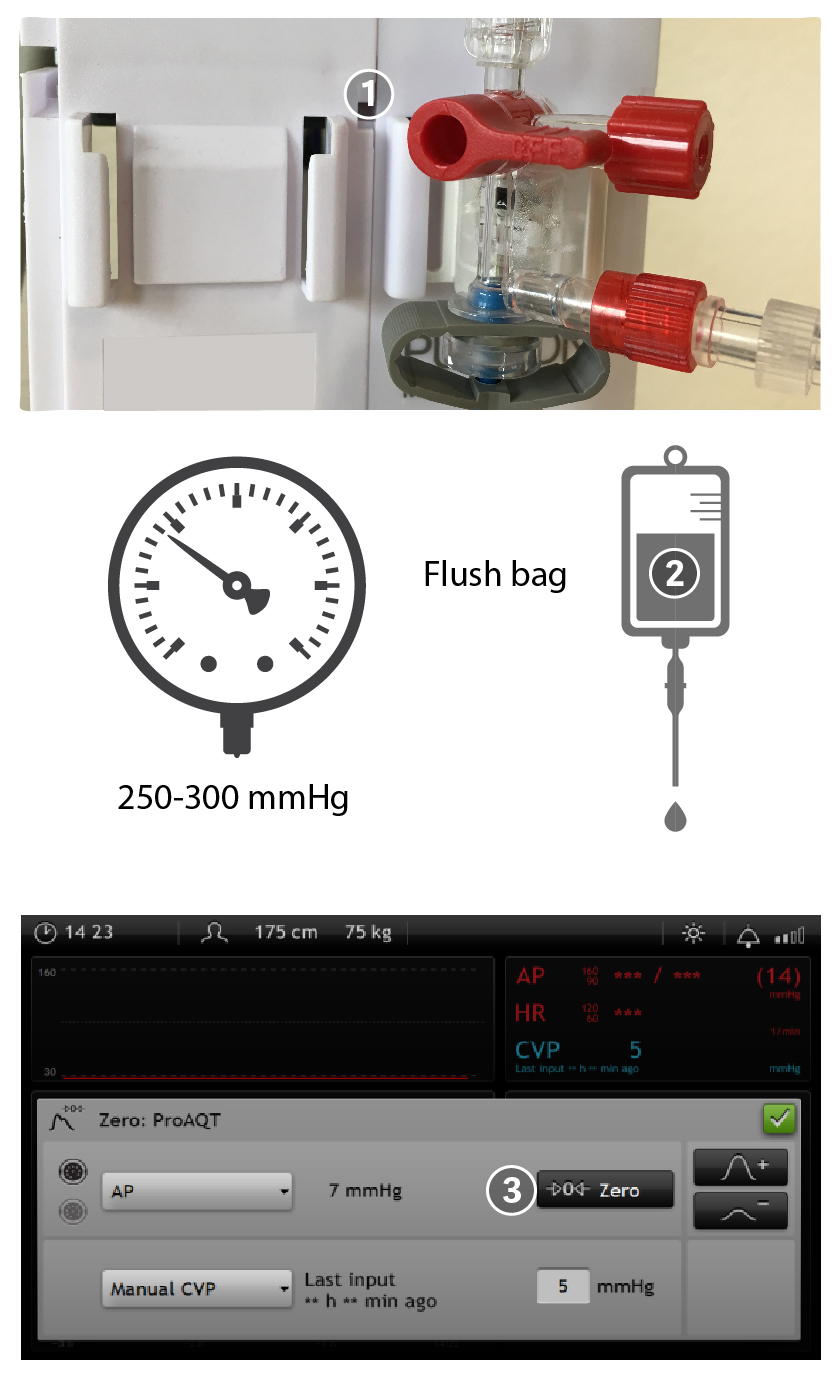

Displayed pressure values not plausible

1

Check pressure transducer positioned to heart level

2

Flush the complete pressure line

3

Perform pressure zeroing

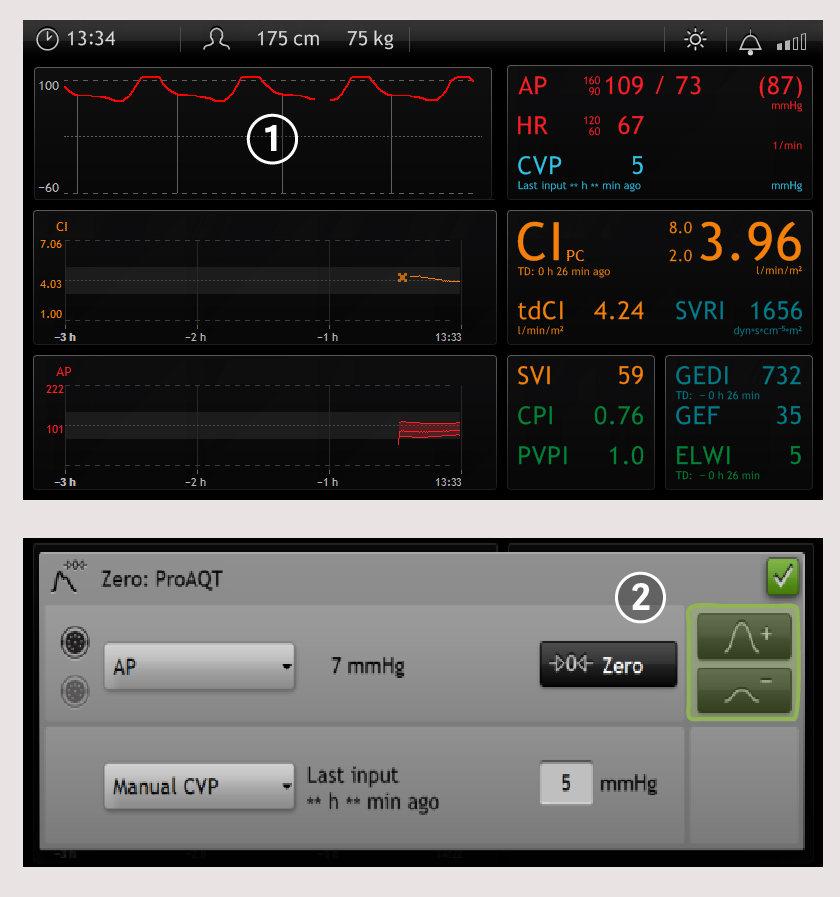

Pressure curve out of scale

Adjust pressure curve scaling

1

Touch the pressure curve

2

Optimize the pressure curve display by the curve +/- scaling buttons

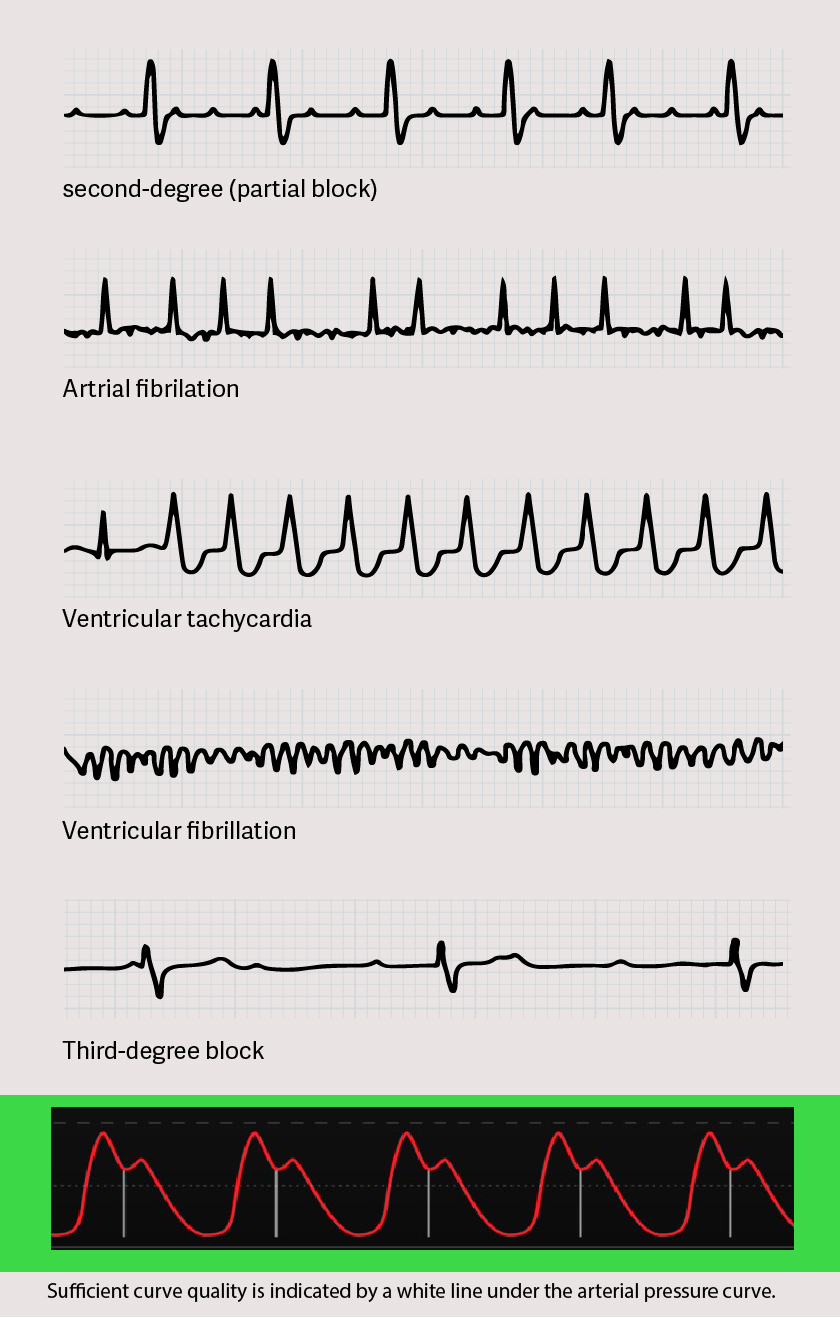

Extra systoles or fibrillations

Possibly improve by medication

!

Remark:
Pulse contour analysis for continuous measurement requires a sufficient quality of the invasive arterial blood pressure signal. Sufficient curve quality is indicated by a white line under the arterial pressure curve.

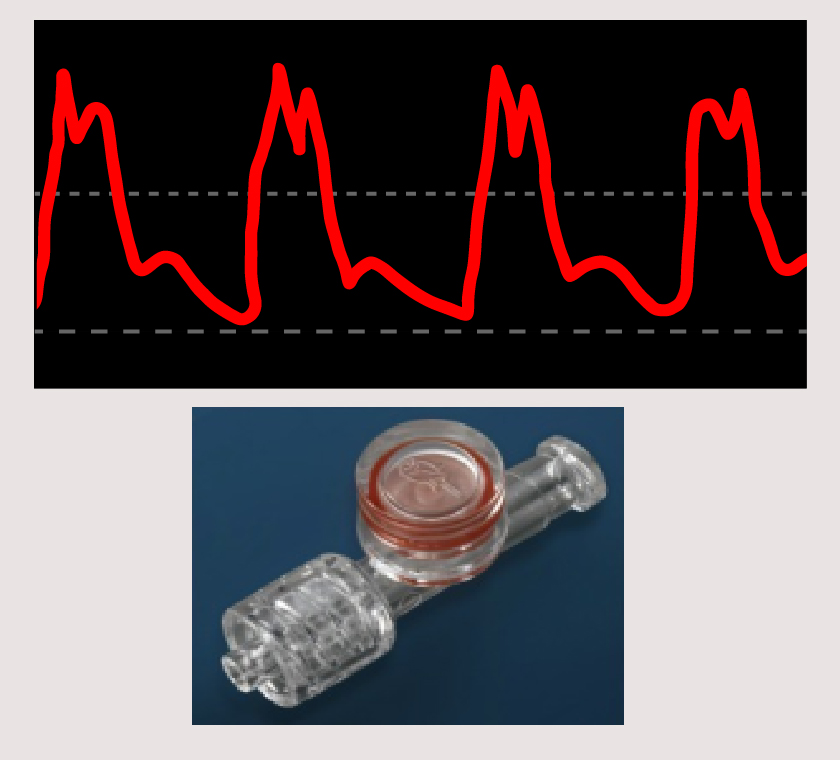

Double peaks in the systole

1

Check pressurized flush bag and flush the complete pressure line

2

If the problem persists, increase damping e.g. by adding R.O.S.E. damping device

3

Perform pressure zeroing


SVV/PPV not plausible or not available

Check requirements for SVV/PPV interpretation

1

Controlled mechanical ventilation

2

Tidal volume of ≥ 8 ml/kg predicted body weight

3

Sinus rhythm, no artefacts on pressure curve

4

Check for treatment or disease as reason
Patient Situation
