GETClean DMS
Modular design to adapt to your needs
GETClean DMS utilizes industry-recognized peristaltic pumps and controller with a patent pending auto-filling reservoir designed to reduce the manual handling and transport of harsh chemical concentrates. The modular design of the system allows it to readily adapt to your chemical distribution requirements.
- Individual bulk chemical tank can supply multiple pieces of equipment.
- Remote chemical delivery up to 250 ft.
- Closed-loop chemical delivery.
![](/siteassets/start/product-catalog/getclean-dmsus/getclean-strobe.jpg)
Strobe/audible alarm alerts staff that low chemistry level conditions are present reducing potential for mid-cycle failures.
![](/siteassets/start/product-catalog/getclean-dmsus/getclean-tank1.jpg)
Reservoir at point-of-use provides an auto-filling chemical supply.
![](/siteassets/start/product-catalog/getclean-dmsus/getclean-remote-.jpg)
Controller and peristaltic pumps move the chemistry from the bulk chemical containers to the reservoirs at point-of-use.
![](/siteassets/start/product-catalog/getclean-dmsus/getclean-tank2.jpg)
Large volume tanks are filled less frequently. Color coded wands and tubing help reduce dose errors. Elimination of containers maintains a clutter-free work area.
![GETclean Plug and Play GETclean Plug and Play](/siteassets/start/product-catalog/getclean-dmsus/getclean-plug-n-play-750.jpg/cropbestbetmiddlecenter-640x427--1532354262.jpg)

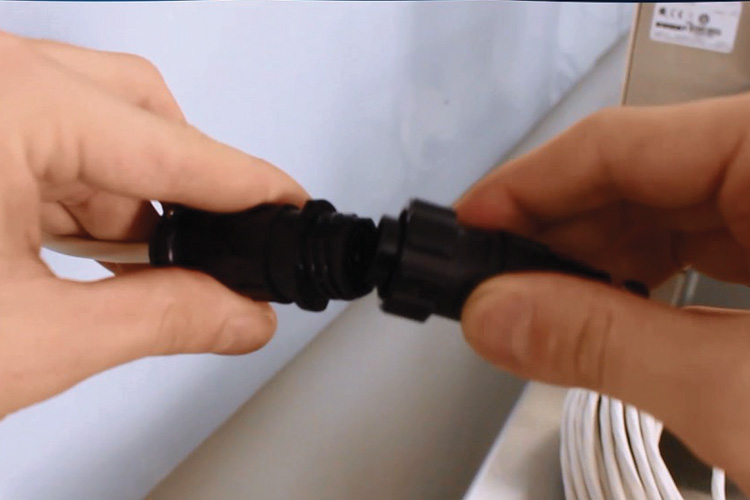

Plug-n-play installation
- No modifications are required, as GETClean DMS uses the existing equipment pumps and controls for chemical dosing
- No wiring of interface or additional validation is required
- Tools aren’t needed, as communication connections are twist-lock
- Works right out of the box without additional programming (as it’s factory set)
- Automated and self-priming
![GETclean pump sizes GETclean pump sizes](/siteassets/start/product-catalog/getclean-dmsus/getclean-pumps-750.jpg/cropbestbetmiddlecenter-640x427--1602286934.jpg)

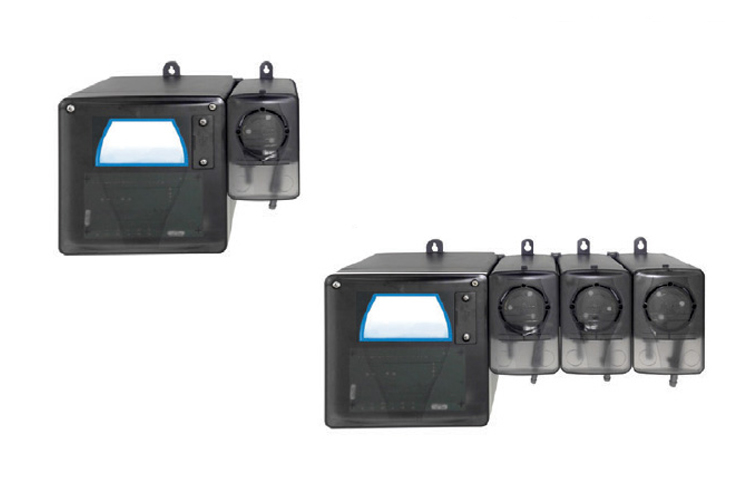

Available in one and three-pump systems
- Peristaltic pump flow rate: 36 oz./min. (1 liter)
- Modular pumps and control unit
- Proven peristaltic pump technology
- Plenum-rated fire-retardant tubing material
- Long-life pump tubes for instrument cleaning chemistries
![GETclean tank sizes GETclean tank sizes](/siteassets/start/product-catalog/getclean-dmsus/getclean-tanks-750.jpg/cropbestbetmiddlecenter-640x427-34599537.jpg)

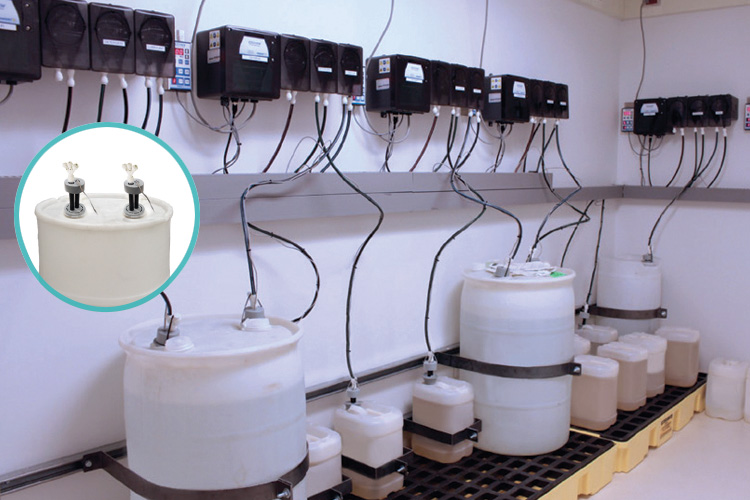

Discover all that one bulk chemical tank can do
- Feeds up to six reservoirs, each with a peristaltic pump
- Supplies chemistries to washer disinfectors, instrument washers, ultrasonic washers, cart washers, and sinks from up to 250 feet away (max. 25 psi)
- From individual supply containers
- From bulk tanks with supply headers
Chemical reservoirs
- Single Washer Reservoir with SIB (WxDxH): 6 x 7 x 11 in. (15 x 18 x 28 cm).
- Multi Washer Reservoir with SIB (WxDxH): 12 x 7 x 11 in. (30 x 18 x 28 cm).

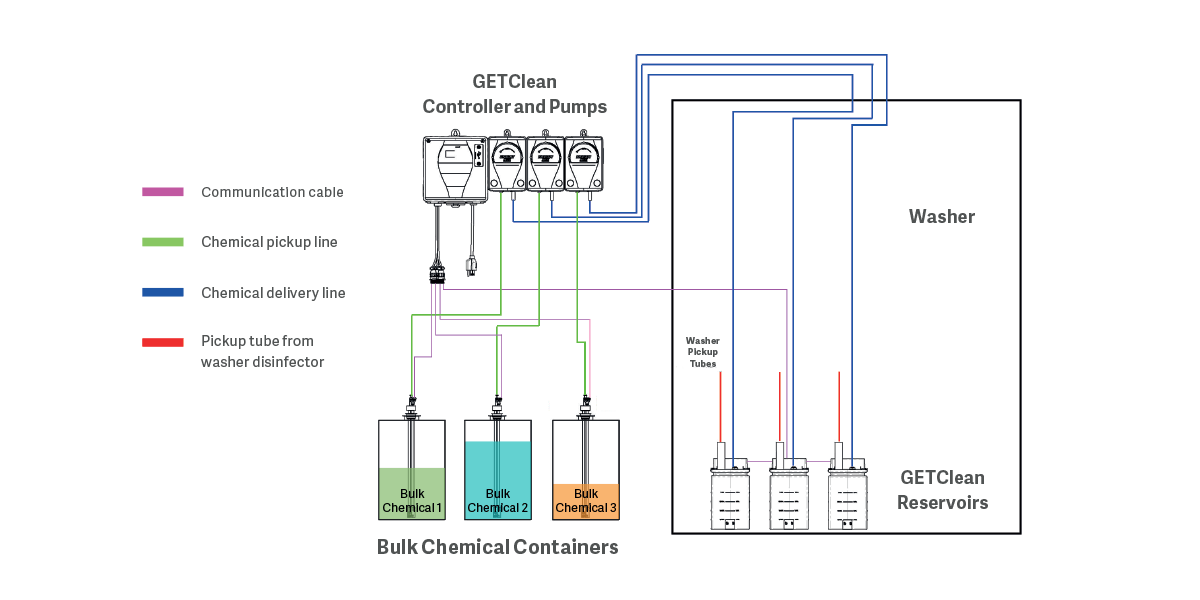

Example: Diagram for Single Washer
![GETClean Example Diagram GETClean Example Diagram](/siteassets/start/product-catalog/getclean-dmsus/getclean-example-1200x600.png/cropbestbetmiddlecenter-1280x854--689520917.png)
