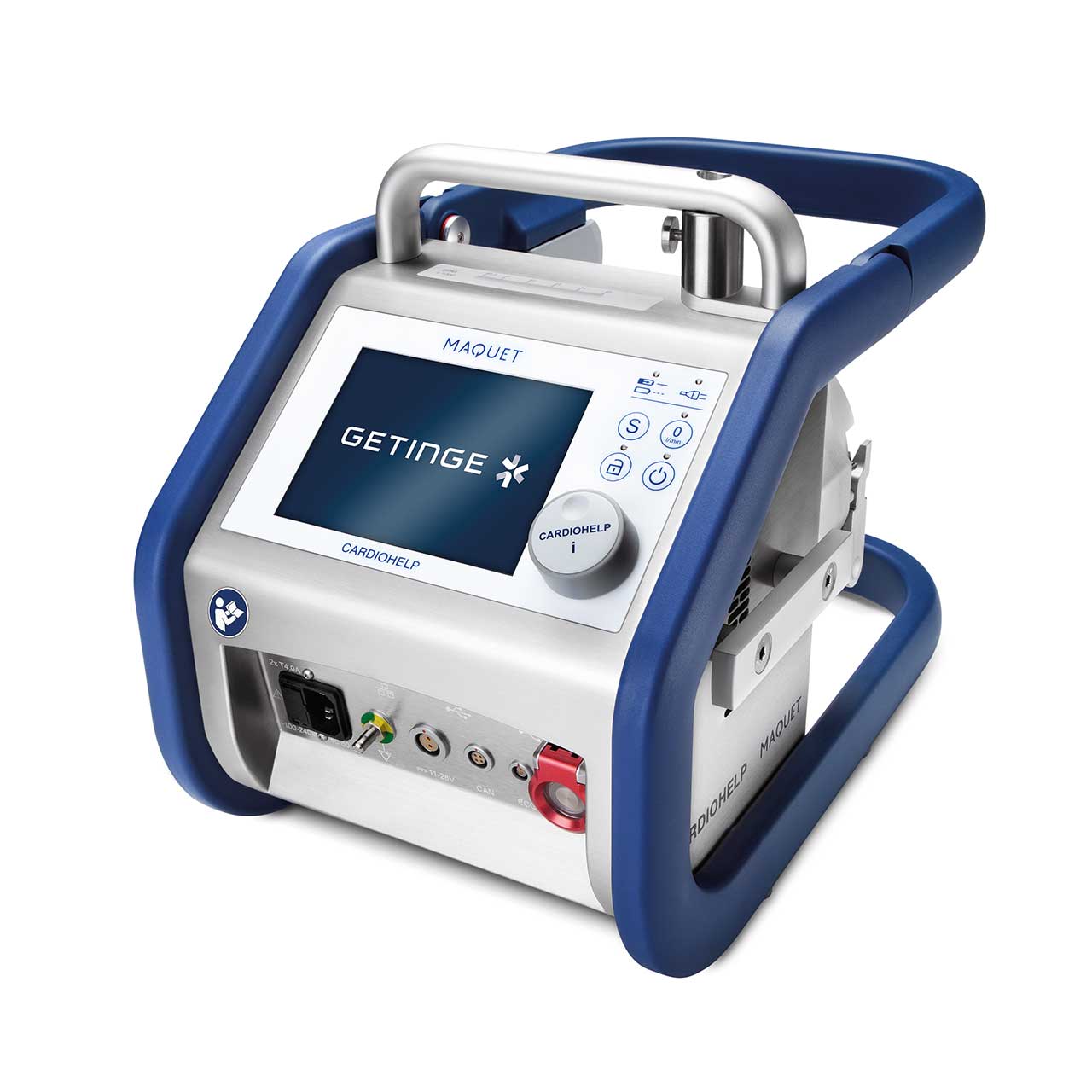

Cardiohelp System
Cardiohelp and HLS Set Advanced
The Cardiohelp System is a compact system that pumps blood through an extracorporeal circuit during full or partial cardiopulmonary bypass or temporary circulatory bypass for periods lasting less than 6 hours. Battery backup and various sensors allow clinicians to monitor important patient parameters during perfusion in an extracorporeal circuit lasting less than 6 hours.
The Cardiohelp System is a device that uses a method other than revolving rollers to pump the blood through an extracorporeal circuit for periods lasting less than 6 hours for the purpose of providing either:
- Full or partial cardiopulmonary bypass (i.e., circuit includes an oxygenator) during an open surgical procedure on the heart or great vessels; or
- Temporary circulatory bypass for diversion of flow around a planned disruption of the circulatory pathway necessary for open surgical procedures on the aorta or vena cava.
Product Specs
Center of gravity
y axis: 132 mm
z axis: 136mm
x axis: 157mm
| Dimensions (W x H x D) | Safety bar closed: 255 x 315 x 427 mm Safety bar open: 255 x 455 x 427 mm |
| Weight | Approx 26 lb (12 kg) |
Power Supply
| Power consumption | 140 VA |
| AC power supply: | |
| Mains voltage | 100 - 240 V AC |
| Frequency | 50/60 Hz |
| Line fuse | 2 x T4.0A / 250 V~/H |
Battery |
||
| Type | 2 Lithium-ion 10.8 V/6450 mAh |
2 Lithium-ion 10.8 V/9210 mAh |
| Battery life | At least 90 min (fully charged batteries) | At least 90 min (fully charged batteries) |
| Charging timeab | 5 h max. | 7 h max. |
a. The specified charging time relates to devices with 0 rpm or when the device is switched off.
b. Depending on the set speed, (rpm), the charging time can increase during operation of the CARDIOHELP-i.
| Monitoring Capabilities (when used with HLS Set Advanced) | Total Quantity |
| Pressure Monitoring | 3 (2 integrated/*∆p 1)
*∆p is calculated & displayed |
| Temperature Monitoring | 2 (2 integrated) |
| Air Bubble Monitoring | 2 (1 Art flow/bubble, 1 Venous) |
| Flow Monitoring | 1 (1 Art flow/bubble) |
| Venous Probe | 1 (measures: Hb, HCT, SvO2, Temp) |
HLS Set Advanced
| Description | HLS 5.0 | HLS 7.0 |
| Blood Flow | 0.5 – 5 LPM | 0.5 – 7 LPM |
| Gas Flow | Max - 10 LPM | Max - 14 LPM |
| Centrifugal Pump Speed | 0 – 5,000 RPM | 0 – 5,000 RPM |
| Oxygenation Membrane Surface Area | 1.3 M2 | 1.8 M2 |
| Heat Exchanger Surface Area | 0.3 M2 | 0.4 M2 |
| Priming Volume - Module | 240 ml | 273 ml |
| Priming Volume - Set | 570 ml | 600 ml |
Getinge Production of HLS Set Advanced
For more than 10 years, we have invested significantly in capacity expansion and process automation for HLS Set Advanced. Watch HLS Set Advanced being produced in our state of the art facility!
