DPTE® Beta Containers

Name: DPTE® Beta Containers
Brand: Getinge

Safely transfer material from one containment area to another

Stainless steel or polyethylene DPTE® Beta Containers allow for safe transfer into and out of a barrier system in various life science applications. The Getinge DPTE® rapid transfer system is based on the interaction of an Alpha part with a Beta part – each fitted with a door, a lock, and a sealing function.

Questions? Contact us.

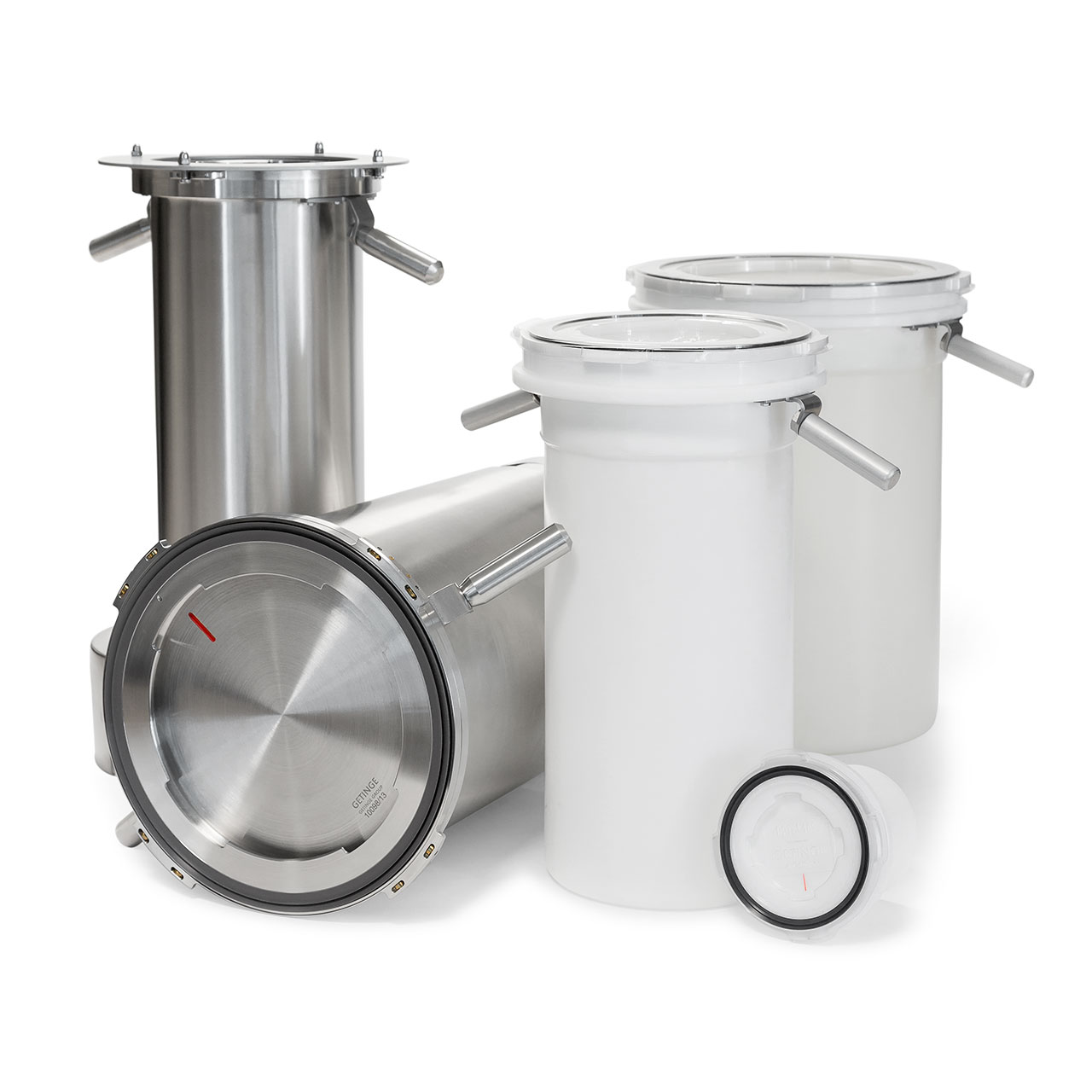

The DPTE® Beta Containers are available in stainless steel or polyethylene with various diameters and lengths.

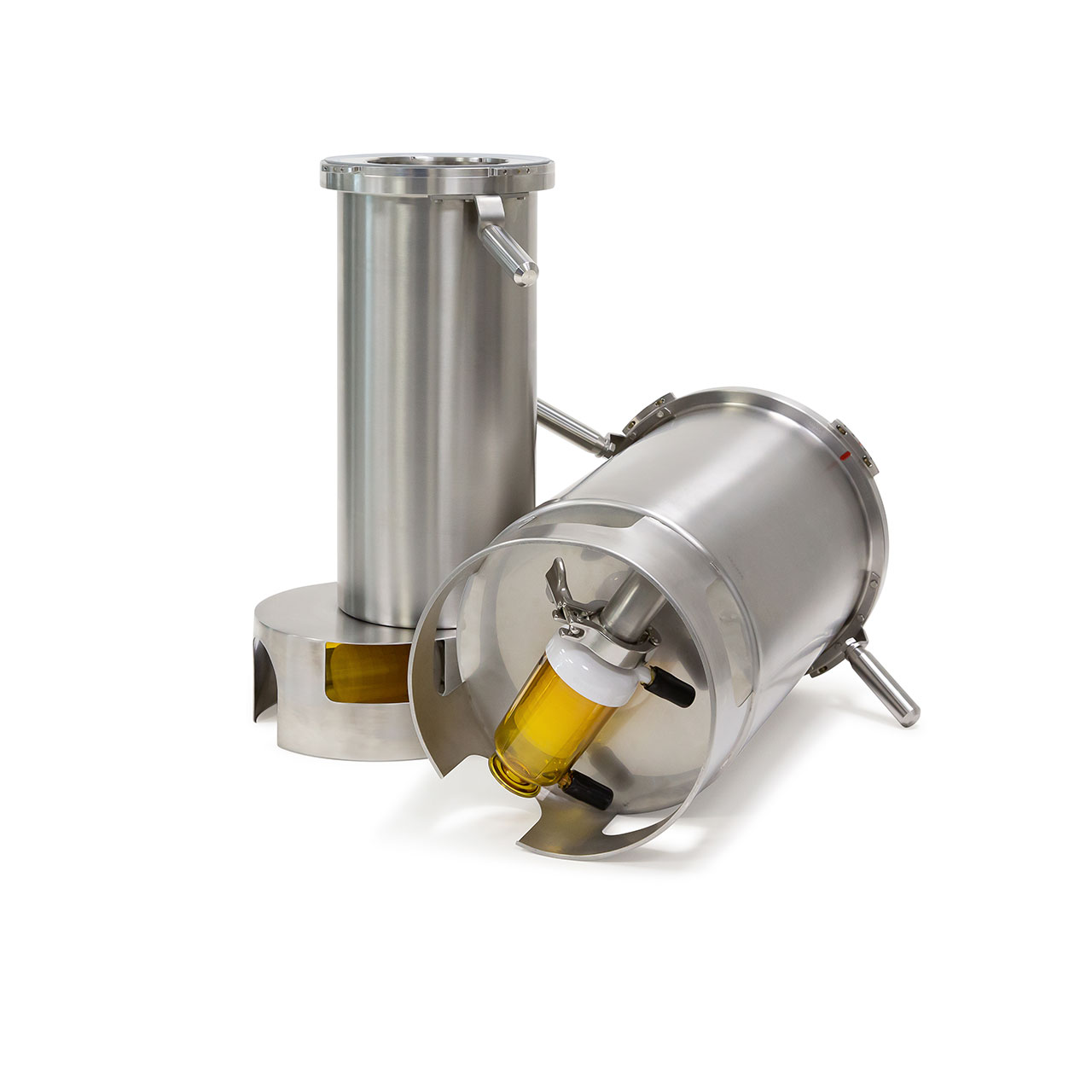

Stainless steel DPTE® Beta Container with optional rack to safely load, sterilize and unload your equipment and components.

Stainless steel DPTE® Beta Container with hydrophobic filter for steam sterilization

Reusable canisters for safe bi-directional transfer

Modular design
Optional racks
Reliable and safe transfer of heavy, complex parts
Validated solution
A large variety of applications

Only original DPTE® alpha and beta parts together form a validated aseptic transfer solution

Transfer of sterile or toxic products in and out of barrier systems is one of the most critical aspects of pharmaceutical production and is necessary to protect both operator and product. Canisters are used to bring in, remove, or transfer material from one environment to another, without breaking containment.

Getinge produces a range of:

standard polyethylene containers,
standard to customized stainless steel containers,
standard to customized stainless steel racks,
container accessories.

Watch the video to learn more about the DPTE® System's principle.

Produkty powiązane

DPTE®-FLEX Alpha Port

DPTE®-XS Alpha Port

DPTE®-EXO Alpha Port

DPTE-BetaBag®

DPTE® Transfer Trolley

DPTE® Glove System

DPTE® Transfer Leak Testers (TLT)

Sterilizer Loading Equipment

GSS L & R Steam Sterilizer

Zobacz wszystko

DPTE® Alpha Rapid Transfer Port for bidirectional transfer in aseptic or toxic working areas.

Compatibility

With DPTE® Alpha Rapid Transfer Port (RTP)

Minimize the risk of microbial contamination associated with operator contact during the manufacturing process with DPTE® Beta Containers.

These canisters are compatible with Getinge DPTE® Alpha flange of the same diameter.

The Alpha and Beta parts fit together with a leak-tight locking method, meaning the integrity of the transfer operation cannot be broken.

Sterilization options

Autoclavable, gamma, or H202 sterilizable containers

The reusable PE/HDPE containers and the material within the container can be sterilized using gamma irradiation or bio-decontaminated with H₂O₂ to ensure a safe material transfer process.

The reusable stainless steel containers are engineered for steam sterilization processes. An integrated hydrophobic sterile filter allows for steam to enter the container, maintaining sterile conditions after the sterilization process. Stainless steel containers may also be biodecontaminated with H₂O₂, if necessary.

An operator using the DPTE® Transfer Trolley to lift a 350 stainless steel DPTE® Beta Container

Accessories

Standard and customized accessories

Optimize your sterile transfer and ensure safe operations with Getinge's standard and customized accessories:

Transport and docking trolley for DPTE® Beta Containers
Stainless steel racks for transferring filling pump needles, plugs, Petri dishes, etc. inside the container
Protective rings for container seals to protect seals during sterilization
Lifting pressure cover
Door-opening key
Polyethylene cover accessory

Available sizes

	Diameter
	105 mm	190 mm	270 mm	350 mm	460 mm
DPTE® Stainless steel Container	●	●	●	●	●
DPTE® PE Container	●	●	●	●	●

Stainless Steel DPTE® Beta Container Models

	Diameter	Length
	Ø	300 mm	400 mm	500 mm	600 mm	700 mm
Standard containers* Autoclavable	190		●
	270		●
	350			●
Semi-standard containers Autoclavable and H₂0₂ sterilizable	190	●	●	●	●	●
	270	●	●	●	●	●
	350	●	●	●	●	●
Configurable containers Using pre-designed parts	190	●	●	●	●	●
	270	●	●	●	●	●
	350	●	●	●	●	●
Customized containers and inserts, dimensions, parts, and finishing to customers' requirements - contact our Sales Team

* Ø 105 and Ø 460 are part of our range, please contact our Sales Team

Load, sterilize and unload safely your equipment and components

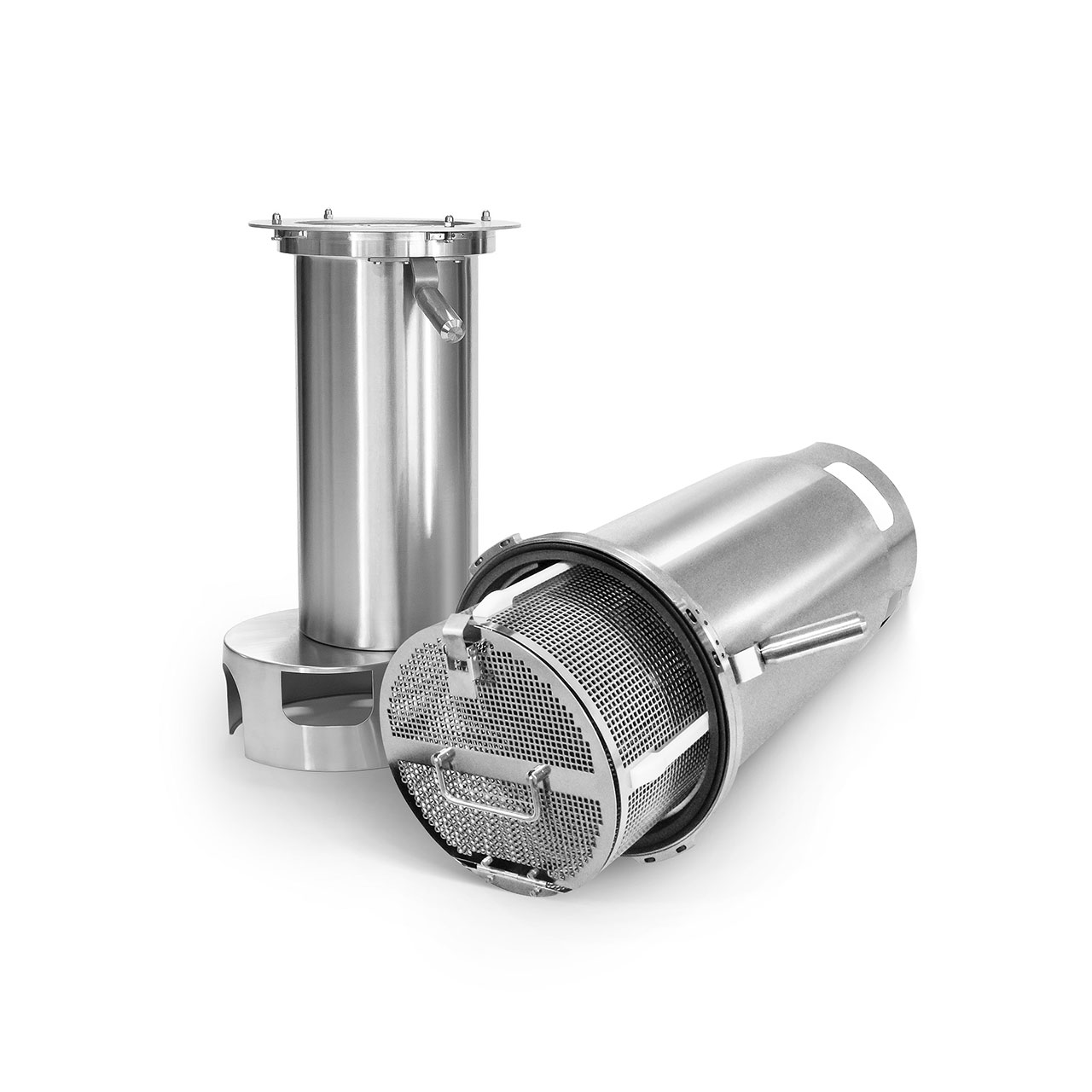

The optional racks provide you with a solution for efficient and ergonomic loading and unloading of components, tools, etc. Items are held securely in place inside the container, enabling complete access by steam during autoclaving, leaving no hidden zones so that steam and air can circulate efficiently.

Glide System

This rounded basket can handle stoppers, caps, etc. The basket can be pulled out of the container to move the parts directly into the hopper of the filling line.

Telescopic System

The basket can be pulled out of the container but remains attached to it. The operator has access to the full rack space.

Roller System

The basket slides on a rail and can be separated from the container. The operator can easily use it outside the container.

Configurable Rack

This rack can handle variably sized components using repositionable spacers and pins. It provides a useful solution adaptable to an almost infinite variety of items of equipment.

Customized Rack

The example shown was designed for a complete toolset including funnel, scissors, spouts, etc. Other potential loads include machine parts, small tools for environmental monitoring, needles, and petri plates.
